What Is a Well Logging Battery Tool? Working Principle, Applications, and Benefits

Reliable power is essential for modern oil well logging operations. Downhole logging instruments must operate consistently under demanding conditions, including high temperature, high pressure, vibration, and long deployment times. A Well Logging Battery Tool provides a dedicated power source for downhole logging equipment, helping ensure stable operation and reliable data acquisition.

Well logging battery tools are commonly used with wireline logging tools, cased hole logging equipment, memory logging systems, and other downhole instruments. Depending on the logging application, battery systems can be designed with different voltage outputs, capacities, dimensions, operating temperatures, pressure ratings, and electrical interfaces.

What Is a Well Logging Battery Tool?

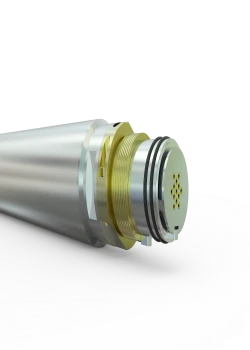

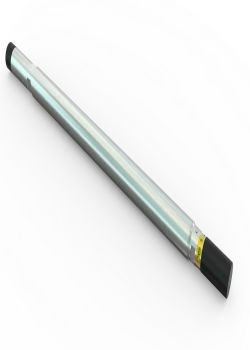

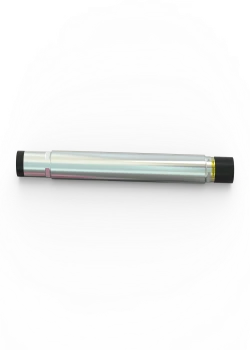

A Well Logging Battery Tool is a downhole power supply designed to provide electrical energy to well logging instruments during oil and gas well operations.

Unlike conventional surface batteries, downhole logging batteries are engineered for deployment inside a wellbore. They need to maintain stable electrical performance while exposed to challenging downhole conditions.

A typical system may include battery cells or battery modules, an electrical connection system, protective housing, and interfaces designed to connect with compatible logging tools.

Depending on the tool configuration, a well logging battery can be used as an independent power section or integrated into a larger downhole logging tool string.

The basic operating principle is straightforward: the battery stores chemical energy and converts it into electrical energy when connected to the logging tool.

During a logging operation, the battery supplies power to electronic components such as sensors, data acquisition circuits, memory modules, communication systems, and other downhole electronics.

The general operating process includes:

◆ Energy Storage-Battery cells store electrical energy in chemical form before deployment.

◆ Electrical Output-When connected to the logging system, the battery delivers electrical power to the downhole tool.

◆ Power Distribution-The electrical system distributes the required power to different components.

◆ Downhole Operation-Logging sensors and electronics operate continuously during the specified deployment period.

◆ Data Acquisition-The powered logging equipment measures and records downhole parameters according to the selected logging program.

For memory-based logging systems, the battery may provide power throughout the logging run while measurement data are stored in the tool's memory for later retrieval and processing.

1. Wireline Logging-A Wireline Logging Battery can provide power for various downhole instruments deployed on wireline. Depending on the tool design, battery power can support sensors, electronics, telemetry systems, and memory modules.

Stable power is particularly important when logging operations require consistent measurements over a long interval.

2. Cased Hole Logging-Cased Hole Logging Batteries are used with logging tools deployed inside casing to support applications such as well integrity evaluation, production monitoring, cement evaluation, depth correlation, and other downhole measurements.

The battery configuration should be selected according to the tool string, well conditions, and expected operating duration.

3. Memory Logging-Memory logging tools record measurement data downhole instead of continuously transmitting all data to the surface. In this application, the battery is a critical component because it must provide sufficient energy for the complete logging run.

Battery capacity and operating time therefore become important selection factors.

4. Production and Well Intervention Operations-Downhole battery systems can also support selected production logging and well intervention instruments where reliable electrical power is required for sensors or electronic modules.

The specific battery requirements depend on the logging tool architecture and operational environment.

Selecting the right Well Logging Battery Tool requires more than simply checking battery capacity. Engineers and procurement teams should consider several technical parameters.

◆ Voltage and Capacity-The battery output voltage must be compatible with the connected logging tool. Capacity determines how much energy is available during operation and should be evaluated together with the tool's actual power consumption.

◆ Operating Temperature-Downhole temperatures can be significantly higher than surface conditions. A battery intended for oilfield logging should have an appropriate temperature rating for the target well.

◆ Pressure Rating-The battery housing and internal components must withstand the expected downhole pressure. Pressure requirements should be evaluated based on maximum anticipated well conditions.

◆ Dimensions and Mechanical Compatibility-Tool diameter and overall length are critical when integrating a battery into a logging string. The battery must fit the available tool configuration without interfering with other components.

◆ Electrical Interface-Connectors, pin configurations, polarity, voltage requirements, and communication interfaces should be checked before ordering. Proper compatibility helps reduce integration problems during field operations.

◆ Operating Time-Battery operating time should match the expected logging duration, including an appropriate engineering margin. Actual runtime depends on battery capacity, temperature, load, tool power consumption, and operating conditions.

A purpose-designed downhole battery offers several advantages over a general-purpose power source.

◆ Reliable Downhole Power: A dedicated battery provides stable power for logging electronics under demanding operating conditions.

◆ Tool Integration: Properly designed battery dimensions and electrical interfaces simplify integration with compatible logging tools.

◆ Operational Flexibility: Battery-powered memory logging systems can operate without continuous surface power or real-time telemetry requirements.

◆ Improved Reliability: A battery designed specifically for downhole applications can be engineered around temperature, pressure, vibration, and mechanical requirements.

◆ Efficient Logging Operations: Adequate battery capacity helps support the required logging duration and reduces the risk of premature power loss.

Before purchasing a downhole logging battery, engineers should evaluate the complete application rather than focusing on one specification.

◆ Consider the following:

◆ Required output voltage

◆ Battery capacity and expected operating time

◆ Maximum operating temperature

◆ Maximum downhole pressure

◆ Tool diameter and length

◆ Connector and electrical interface

◆ Compatibility with the logging tool string

◆ Expected power consumption

◆ Logging depth and operation duration

◆ Supplier technical support and customization capability

For procurement teams, it is also important to request complete technical specifications and confirm compatibility before placing an order.

A Well Logging Battery Tool is an important power component for many wireline, cased hole, memory logging, and other downhole applications. Its performance directly affects the reliability and operating duration of the connected logging equipment.

When selecting a downhole logging battery, engineers should consider voltage, capacity, temperature rating, pressure rating, dimensions, electrical compatibility, and operating time rather than evaluating battery capacity alone.

For oilfield service companies and logging equipment buyers, choosing a reliable Well Logging Battery Tool supplier or manufacturer can help ensure stable downhole power and dependable field performance. A properly matched battery solution can improve operational reliability and support efficient well logging under demanding downhole conditions.
